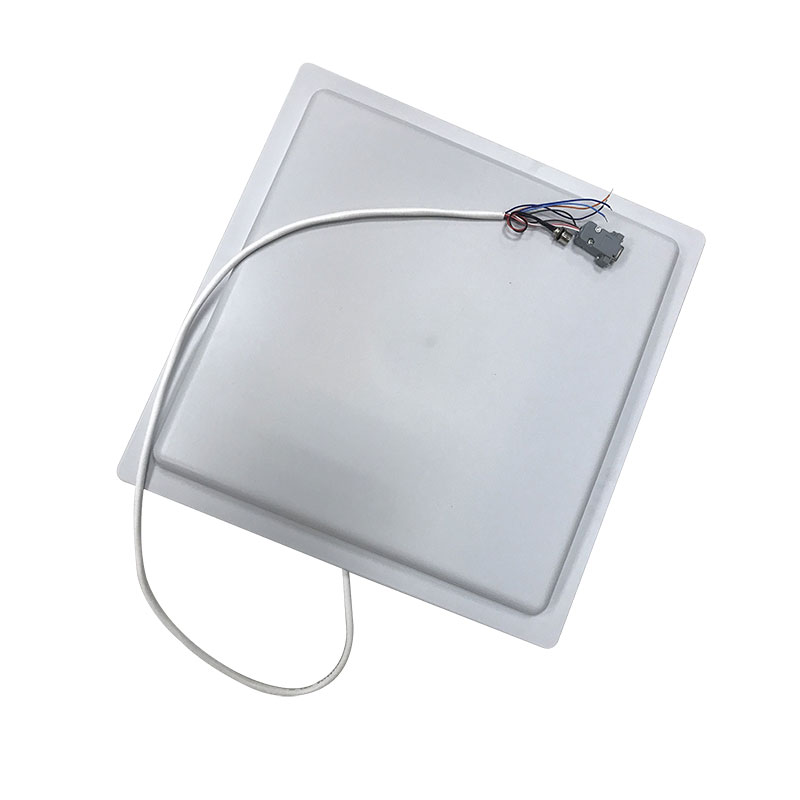

IMPERVIUS Weigand UHF Porta Access Imperium Reader vehiculum Uhf Rfid Card Reader

Hic UHF lector est IMPERVIUS weigand UHF ianua accessus moderatio lectoris vehiculum uhf rfid card reader. Nos accessum lupum card lectorum fabrica et supplementum in Sinis, fuimus ostium aditum legentibus fabricandi per multos annos. our uhf card reader has high quality, good price ac bonum tibi servicium praebere possumus. Expectamus ut diuturnum tempus particeps fiat in Sinis.

Mitte Inquisitionem

depictio producti

IMPERVIUS Weigand UHF Porta Access Imperium Reader vehiculum Uhf Rfid Card Reader

1.Product Introduction

UHF rfid lector est summus effectus uhf rfid lectoris integratis.it ad plene self-intellectualis possessionem. innititur in efficiente digitali signo proprietatis signo algorithmi processus, operationem celeriter tag legere/scribere, cum identitate rate.it late applicari potest. multae RFID applicationes systemata ut logistics, accessum imperium, et processus productionis simulata et industrialis ratio temperantiae.

2.Product Description

l Proprietas propria;

l Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocollum tag;

l 865~868MHz cohortis frequentiae (frequency customization ad libitum);

l FHSS vel Fix Frequentia tradenda;

l RF output power up to 30dbm(adjustable);

l 8dbi antennae ad libitum cum effectu distantiae usque to6m*;

l Support auto-cursus, interactivos et trigger-activas laboris modum;

l Humilis potentia dissipatio cum uno +9 dc potentia copia;

lSupport RS232, RS485, Wiegand26/34interface;

l Provide DLL ac Demonstratio Software Source codice ad ulteriorem progressionem faciliorem reddendam.

3.CHARACTERISTI CS

l absolute Maximum Rating

ITEM	SYMBOL	PRETIUM	AS
Potestas Supple	VCC	16	V
Operans Temp.	TOPR	-20~+70	℃
Repono Nativ.	TSTR	-25~+80	℃

l Electrical et Mechanica Specification

Sub TAï¼ 25â"ƒï¼ŒVCCï¼ +9V nisi certa"

ITEM	SYMBOL	MIN	TYP	MAX	AS
Potestas Supple	VCC	8	9	12	V
Current Dissipatio	I C		350	650	ma
Frequentia	FREQ	865		868	MHz
Effective distantia	DIS	300	500	600	cm

INTERFACE

ITEM	COMMENT
rubrum	+9V
nigreos	GND
flavus	Wiegand DATA0
caeruleum	Wiegand DATA1
Purpura	RS485 R+
Orange	RS485 R-
Brown	GND
album	RS232 RXD
Viridis	RS232 TXD
Gray	Trigger inputï¼ˆTTL levelï¼‰

* Spatium efficax dependet ab antenna, tag et ambitu.
