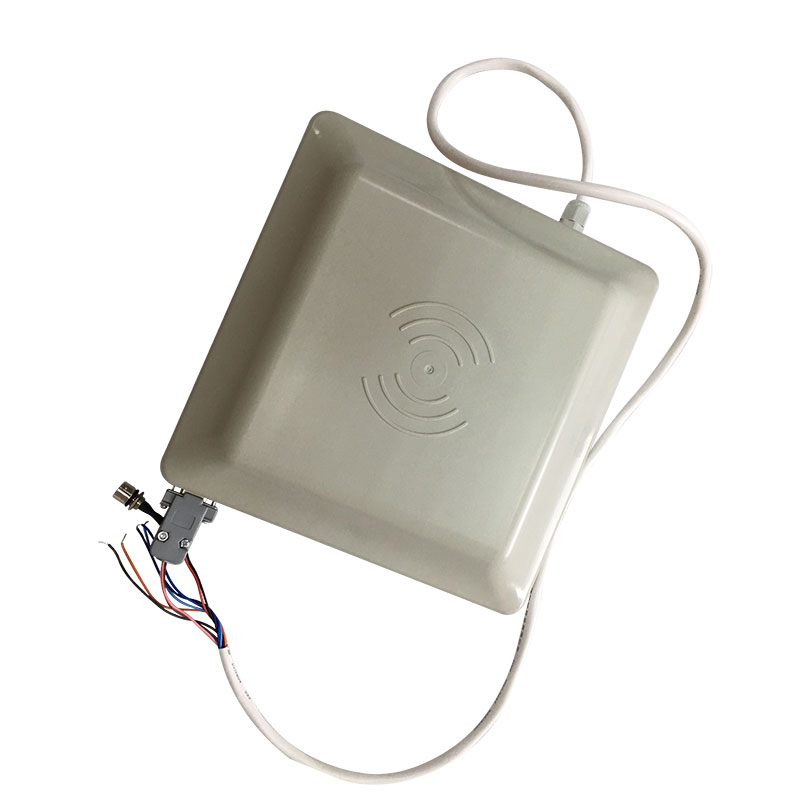

840-960Mhz Mid-Range Integrated Reader Passive UHF RFID Reader For Car Quisque System

Lector raeda haec raeda est 840-960Mhz mid-range integrated lector passivus UHF RFID lector pro car raeda systema. In Sinis sumus uhf rfid lectores fabrica et supplementum in Sinis fabricandis legentibus medium range integratis per multos annos. our mid-range uhf lector altam qualitatem habet, bonum pretium ac bonum tibi servicium praebere possumus. Expectamus ut diuturnum tempus socium in Sinis decet.

Mitte Inquisitionem

depictio producti

840-960Mhz Mid-Range Integrated Reader Passive UHF RFID Reader For Car Quisque System

1.Product Introduction

UHF rfid lector est summus effectus uhf rfid lectoris integratis.it ad plene self-intellectualis possessionem. innititur in efficiente digitali signo proprietatis signo algorithmi processus, operationem celeriter tag legere/scribere, cum identitate rate.it late applicari potest. multae RFID applicationes systemata ut logistics systema, ratio sortes raedam, systema imperium accessum, et processus productionis ratio simulata et industrialis anti-stiae.

2.Product Description

l Proprietas propria;

l Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocollum tag;

l 865~868MHz cohortis frequentiae (frequency customization ad libitum);

l FHSS vel Fix Frequentia tradenda;

l RF output power up to 30dbm(adjustable);

l 8dbi antennae ad libitum cum effectu distantiae usque to6m*;

l Support auto-cursus, interactivos et trigger-activas laboris modum;

l Humilis potentia dissipatio cum uno +9 dc potentia copia;

lSupport RS232, RS485, Wiegand26/34interface;

l Provide DLL ac Demonstratio Software Source codice ad ulteriorem progressionem faciliorem reddendam.

lSpatium efficax pendet ab antenna, tag et environment.

3.CHARACTERISTI CS

l absolute Maximum Rating

ITEM	SYMBOL	PRETIUM	AS
Potestas Supple	VCC	16	V
Operans Temp.	TOPR	-20~+70	℃
Repono Nativ.	TSTR	-25~+80	℃

l Electrical et Mechanica Specification

Sub Tï¼ 25â"ƒï¼ŒVCCï¼ +9V nisi certa"

ITEM	SYMBOL	MIN	TYP	MAX	AS
Potestas Supple	VCC	8	9	12	V
Current Dissipatio	I C		350	650	ma
Frequentia	FREQ	865		868	MHz
Effective distantia	DIS	300	500	600	cm

INTERFACE

ITEM	COMMENT
rubrum	+9V
nigreos	GND
flavus	Wiegand DATA0
caeruleum	Wiegand DATA1
Purpura	RS485 R+
Orange	RS485 R-
Brown	GND
album	RS232 RXD
Viridis	RS232 TXD
Gray	Trigger inputï¼ˆTTL levelï¼‰

* Exemplar libitum TCP cum TCP/IP interface etiam in promptu est.
